Administrator Tutorial

This tutorial guides through all administrative steps to setup a first review project:

• Use the Processing application to transform your unstructured data into individual Documents.
• Create a new Workspace in the Platform to host your Documents.
• Import the Documents using the eDiscovery Bridge application and apply final staging actions.
• Prepare the review by identification and batching of potentially relevant Documents.
• Establish User access by creating a new Group, link it to both Workspace and default Access Control Plane.

Process Data

Prepare the structure of the source data before continuing. The example below has two folders labeled with the custodian’s name, each containing a single PST file containing their mailbox data.

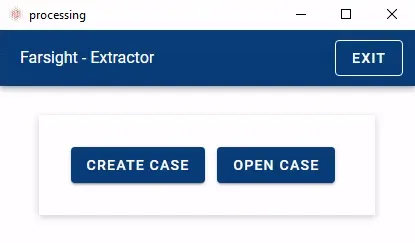

1. Start the Processing application.

2. Click the button CREATE CASE to open the Select Folder dialog.

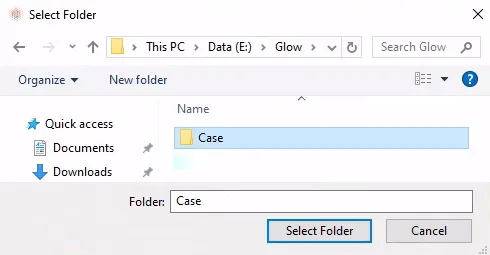

3. Select an empty folder to store the case data and confirm by pressing the button Select Folder.

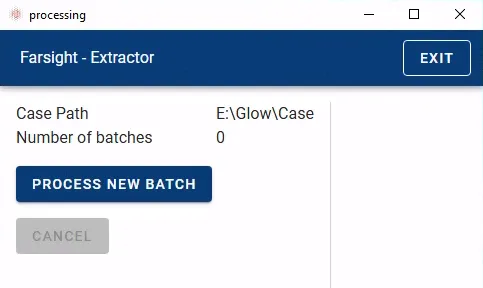

4. Click the button PROCESS NEW BATCH to open another Select Folder dialog.

5. Select the folder containing the source data and confirm by pressing the button Select Folder.

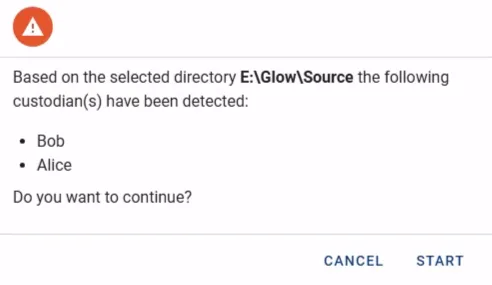

6. See the list of detected custodians and confirm to continue by pressing the START button.

7. Processing will start immediately and keep updating the statistics while running.

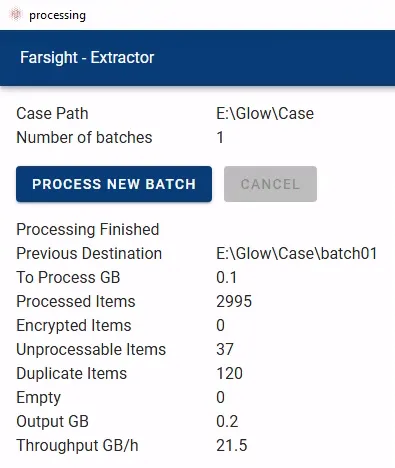

8. Once completed the Number of batches is increased to 1 and the button PROCESS NEW BATCH becomes available.

9. The destination folder batch01 contains the results and will look similar to the structure below.



10. This concludes the Processing phase and the application can be closed.

We will return later to the output folder as we need to create a Workspace to host these Documents first.

Workspace Creation

Open Farsight Platform Management in your browser and log in with administrative privileges.

1. Go to the tab Workspaces.



2. Look for the Farsight Default Template.

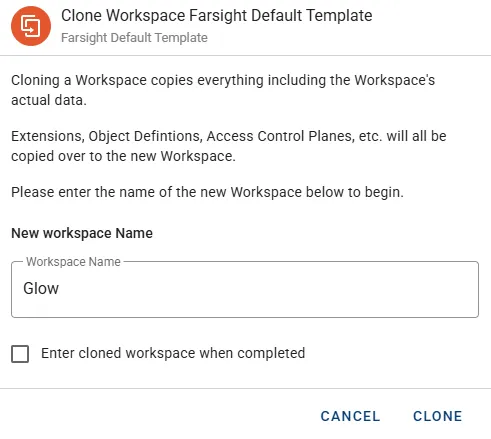

3. Click Clone icon to open the Clone Workspace dialog.



4. Assign a name in Workspace Name input box.



5. After initialization the new Workspace will become visible.



6. Access the Workspace by clicking the link in the Name column.

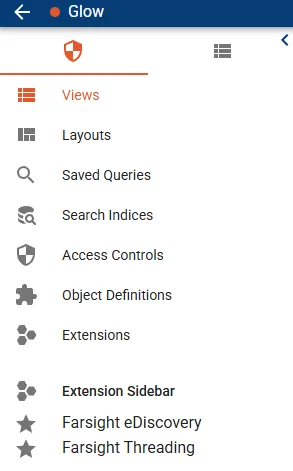

7. As the Workspace is derived from the template it will already have the eDiscovery and Threading Extensions installed.

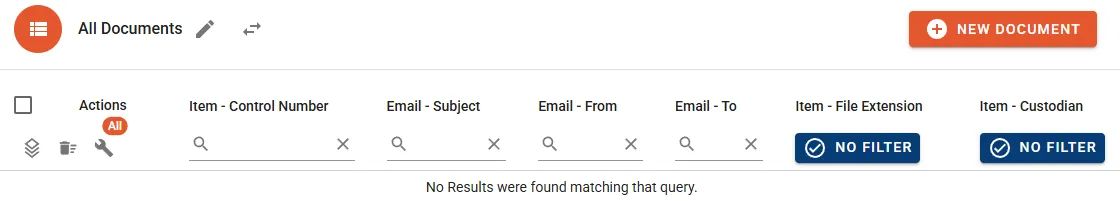

8. Checking the Documents tab will show no available records for the moment.



At this stage the Workspace is just an empty container ready to receive the first Documents.

Import Data

1. Start the eDiscovery Bridge application, register the instance URL and log in.

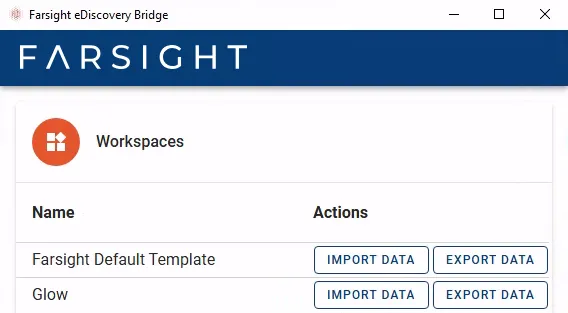

2. Click the button IMPORT DATA next to the name of the designated Workspace.

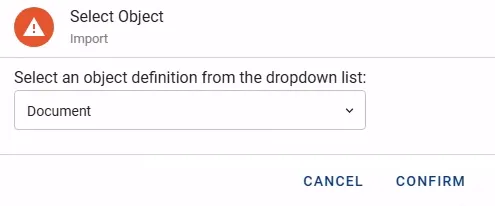

3. The Select Object dialog opens with Document pre-selected. Processed data are Documents, go ahead and press the button CONFIRM.

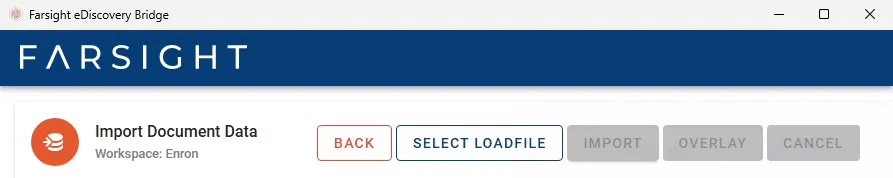

4. Press the button SELECT LOADFILE.

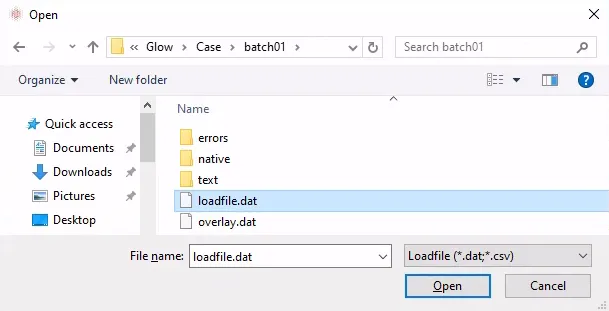

5. In the Open dialog select the file loadfile.dat from your previously processed batch01 folder and click the button Open.

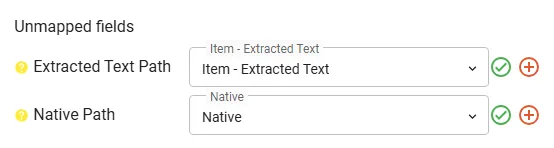

6. Having this Workspace cloned from the template should not leave many Fields unmapped. Typically the two Fields below are not mapped automatically because their names are slightly different.

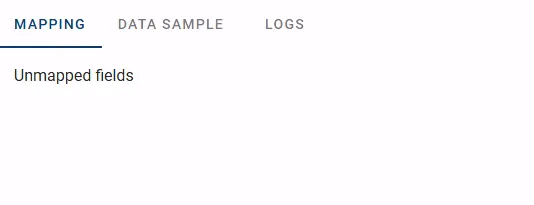

7. Click the green checkmark icons to accept these and the list of Unmapped fields should be cleared.

8. Press the button IMPORT which will present the Rebuild Indexes dialog. Feel free to disable the checkbox as the manual build process is explained along this tutorial.

9. Press the button CONFIRM to start with the import process.

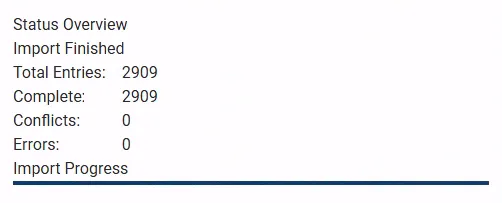

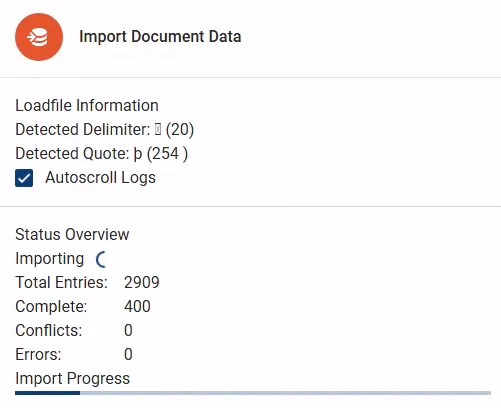

10. Once completed the label Importing with the spinning wheel will change to Import Finished.

11. Close the eDiscovery Bridge application.

As this is the first batch processed for this matter the file overlay.dat remains empty and no further action is needed.

Stage Data

Return to the Farsight Platform Management and enter the previously created Workspace.

Convert Documents

Note

Each Document requires conversion before it can be displayed by the integrated Document Viewer. Broadly speaking the conversion process can take place automatically once a Document is accessed for the first time. While the pre-conversion of Documents described below is optional it can help to streamline the flow of the review queue.

1. Return to the Documents tab.
2. It should present the same amount of records as indicated during import which can be checked in the footer bar.

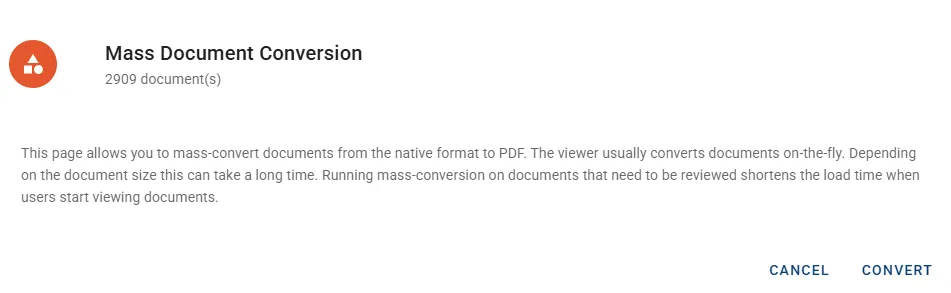

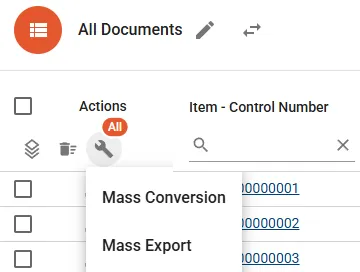

3. Click the wrench icon in the Actions column and select Mass Conversion from the drop-down menu.
4. Acknowledge the information by pressing the button CONVERT.
5. Move on to the next step while the conversion task will run in the background.

Index Documents

The Workspace template comes with a pre-configured Search Index and associated Saved Query. Building the Search Index will make it operational unless you decided to run an automatic build during the import performed earlier on.

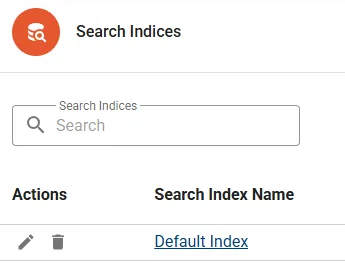

1. Enter the Workspace and go to the tab Search Indices.
2. Click on the link Default Index to see the details.
3. Click the button BUILD FULL in the console area.

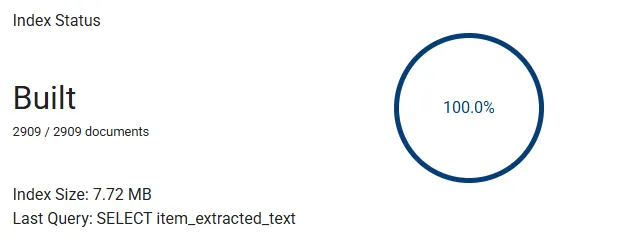

4. Once the build process completed, the status area is updated and showing Built with the total of included Documents.
5. Click the button ENABLE FOR USERS to make the Search Index accessible for regular Users.
6. Return to the Documents tab of the Workspace.
7. The title bar now includes an input box for running ad-hoc Index Searches.
8. Enter a random term into the Search Term input box and hit the return key. This should narrow down the Documents immediately which can be checked in the footer bar.

Prepare Review

Stay in Workspace Management and try the steps below.

Search Documents

The keyword list below is used to narrow down the Document set.

Term
FERC
”Talking Points”
risk AND exposure
contract OR agreement
commodities AND (transactions OR products)
renewable W/10 energy

1. Go to the tab Search Term Reports and click the button NEW SEARCH TERM REPORT in the top right corner.
2. Fill in all the input boxes as shown in the screenshot below and press the SAVE button.
3. The Search Term Report details page is opened. Terms are not yet defined and the buttons on the console remain unavailable for the moment.
4. Click the button ADD TERMS.

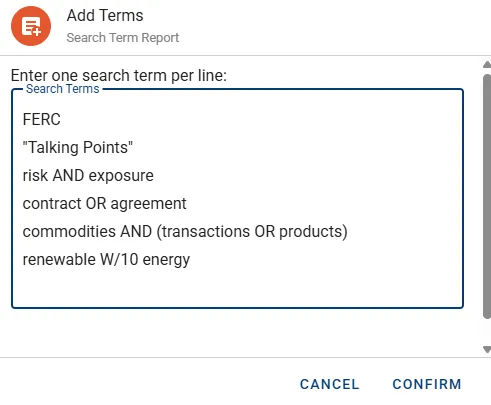

5. This will open the Add Terms dialog where you can paste the list of terms.
6. Press the button CONFIRM to close the dialog and see the updated Status Information.
7. Go ahead and press the button RUN TERMS.

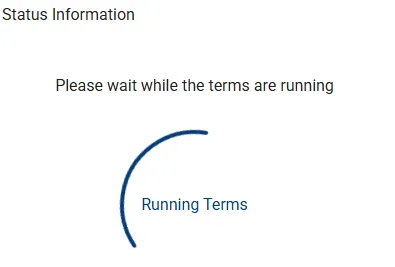

8. Status Information will now indicate report execution.

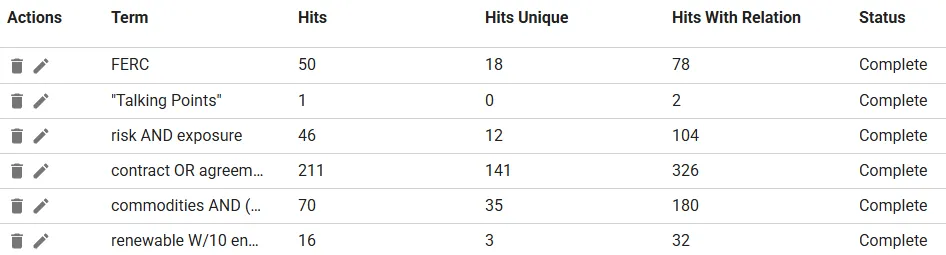

9. Once completed the term list is populated with the resulting counts.
10. Optionally download the term list in CSV format by clicking the button DOWNLOAD REPORT.

Browse Resulting Documents

The Search Term Report created in the previous step was configured to flag the Documents. In this step the flag will be used to create a persistent query returning a selected sub set of the Documents.

1. Go to the tab Saved Queries.
2. Press the button NEW SAVED QUERY in the top right corner.

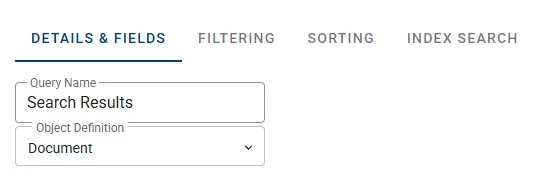

3. Fill in the name Search Results and switch Object Definition to Document.

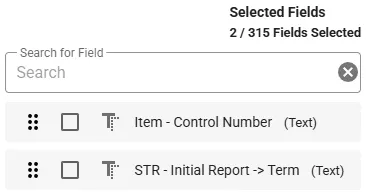

4. Move the Fields shown below to the Selected Fields area.

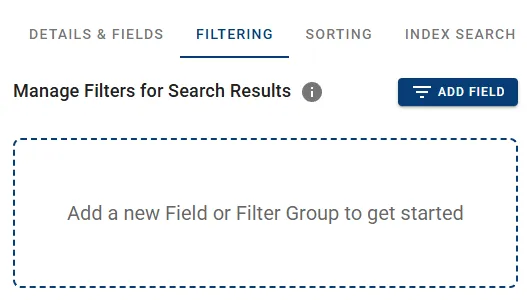

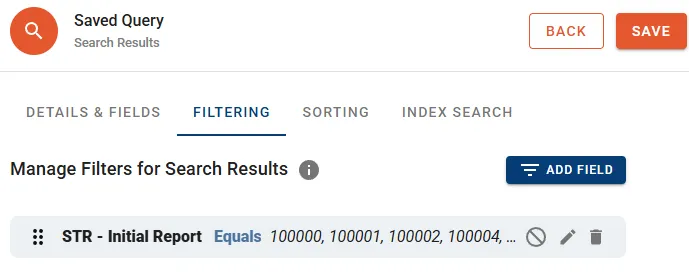

5. Switch to sub tab FILTERING.
6. Press the button ADD FIELD, filter for “str” and select STR - Initial Report (not the arrow).

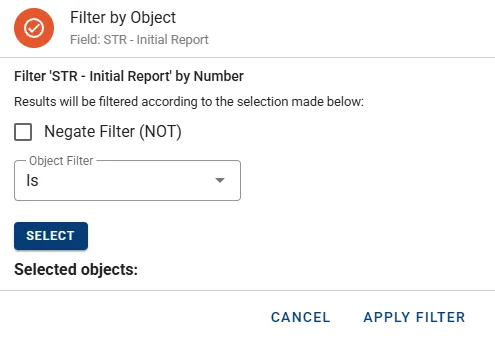

7. In the dialog switch the Object Filter to Is and press the button SELECT.

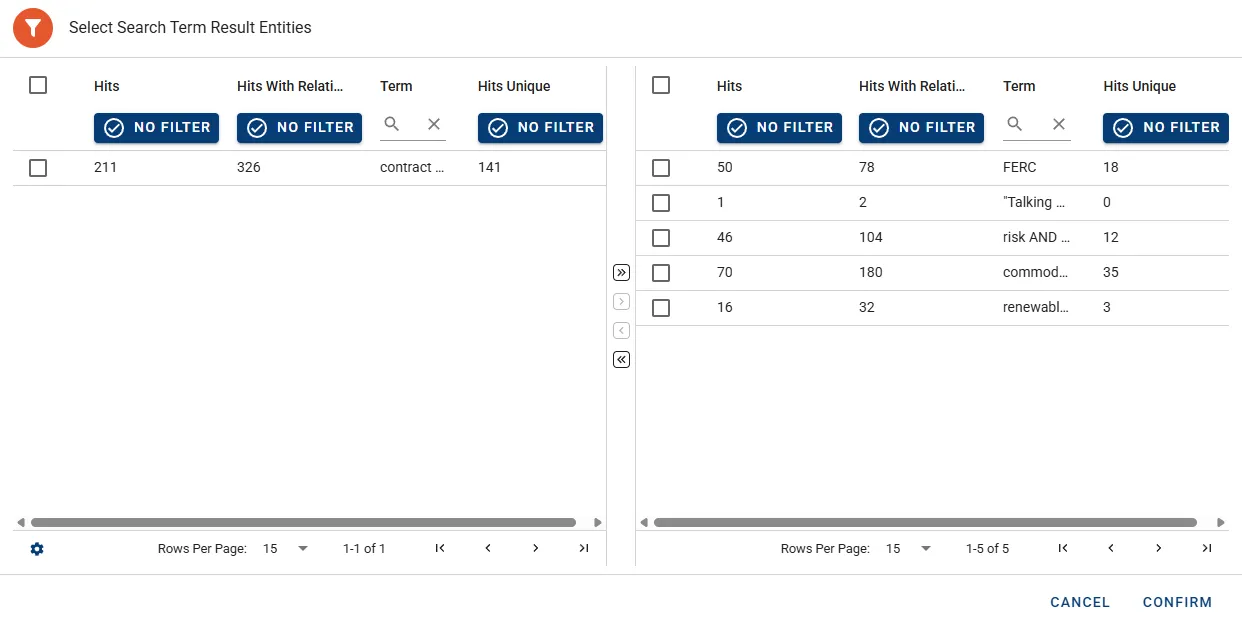

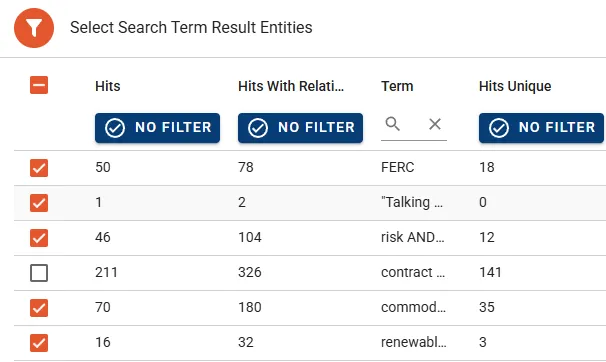

8. In the next dialog, select all results except “contract OR agreement”.
9. Press the arrow button to move them over.

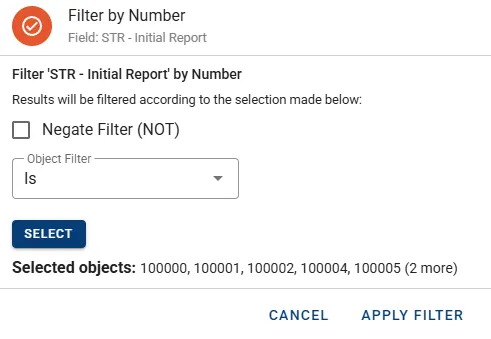

10. The selected results should now appear on the right.
11. Press the button CONFIRM to close this dialog and then press the button APPLY FILTER to close the other dialog.
12. Press the button SAVE in the top right corner.

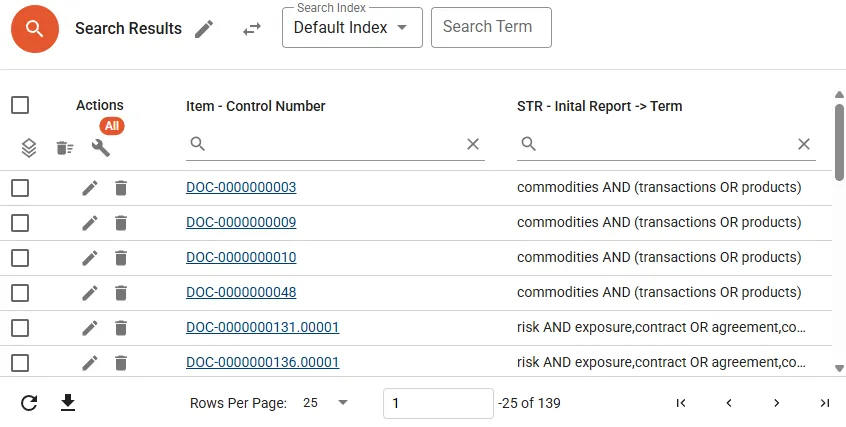

13. The Saved Query is executed and results displayed. Note that the list is filtered to Documents with actual hits and the responsive terms can be seen on the right column.

Batch Documents

Now we can build smaller work packages of the Documents and the previously created Saved Query will be used as source.

1. Go to the tab Batch Sets.
2. Click the button NEW BATCH SET in the top right corner.

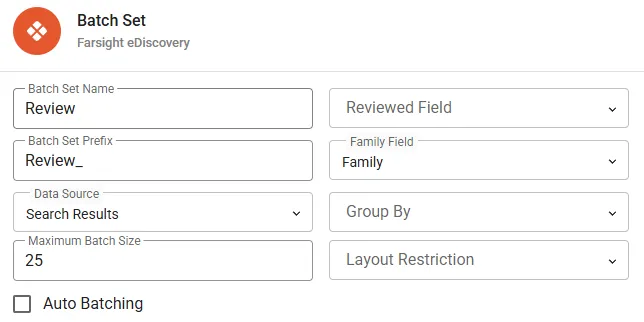

3. Fill in the dialog with the values from the screenshot.
4. Press the button SAVE in the top right corner which will bring you to the details page of the new Batch Set.

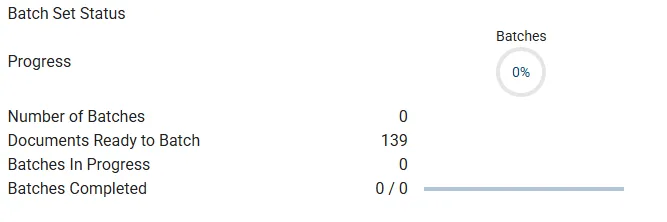

5. The status area is indicating that there are Documents Ready to Batch.
6. Click the button CREATE BATCHES in the console area.

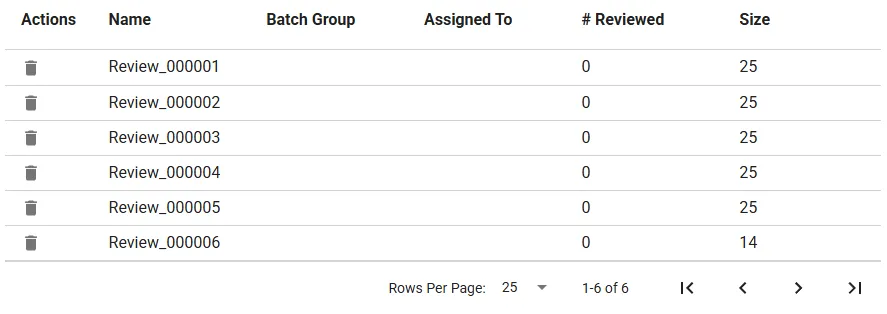

7. After generation the Batches will appear in the record area.

Ultimately all the Document related preparation work has concluded so we can take care of access provisioning.

Provide Access

Use Platform Management to create a new Group and link it to the Workspace. In a last step the Group is linked to the Access Control Plane from within the Workspace.

Create Group

1. Return to Platform Management and go to the tab Groups.
2. Click the button CREATE GROUP in the top right-corner.

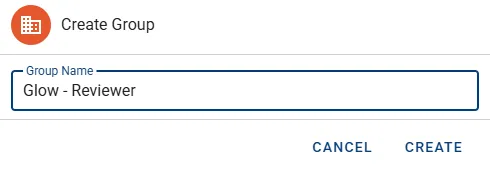

3. Ideally the Group Name does reflect the connected Workspace and the function of the members.
4. Press the button CREATE to continue.

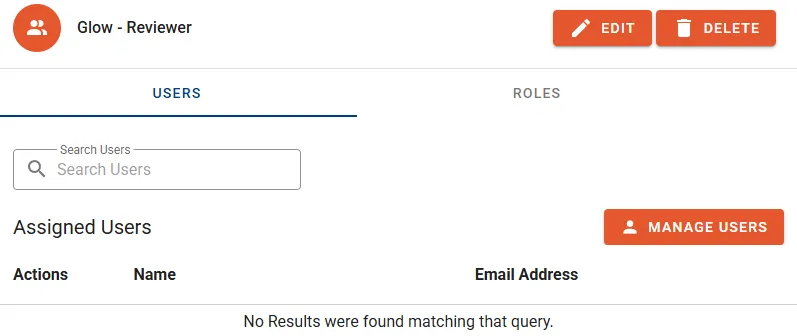

5. Click the link on the Name column for the new Group to see the details.
6. Currently there are no Users assigned but this can be changed by clicking the button MANAGE USERS.

Link Workspace

1. Go to the tab Workspaces.

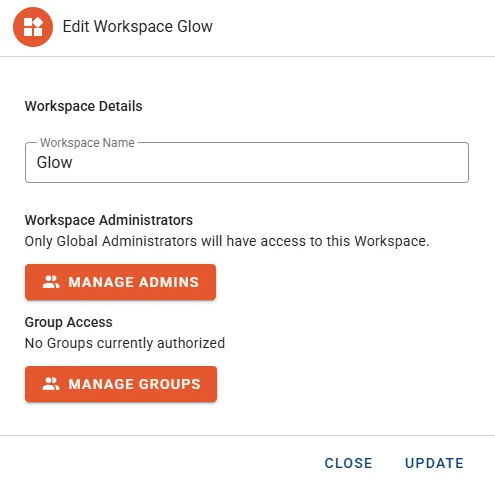

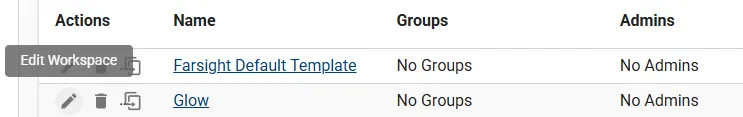

2. Click the Edit icon next to your Workspace to enter the edit dialog.
3. Click the button MANAGE GROUPS.
4. The dialog Manage Workspace Groups appears. Check the newly created Group and click the button CONFIRM.
5. Click the button UPDATE to close the Edit Workspace dialog.

Link Access Control Plane

1. Go back into the Workspace and click on the tab Access Controls.
2. There is already a pre-defined minimal Access Control Plane but no groups are assigned.

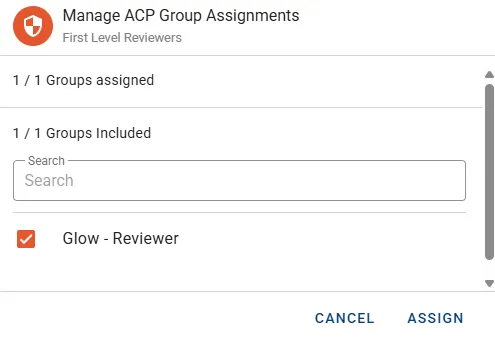

3. In the Actions column press the button to Manage Group Assignments.
4. Check the Group and click the button ASSIGN to close.
